Education Robot System

Perfect for school and education
[NEW model]

Description

Whether for school, university, training, or just for home...

This education robot system is a complete 6-axis robot and can be moved and programmed like a real one.

The connection to the world of KUKA robot programming is created by a software plug-in for KUKA® OfficeLite, the virtual robot controller from KUKA®. This means that the robot can be operated and programmed like a real KUKA® robot.

Alternatively, the robot can also be programmed using the LEGO® SPIKE™ PRIME APP.

Learn everything about gears and kinematics when assembling the ~ 850 parts (KIT), or start programming right away with the robot (READY) that we have assembled and tested. Your choice!

Education Robot [starting from 1190 EUR *]

The structure of the robot is based on a real industrial robot. The motors are controlled by a built-in LEGO® SPIKE ™ control.

- 6 axis / motors
- just over 850 pieces (original bricks of LEGO)
- operating range of the robot about 330 mm
- Gearbox and kinematics like a real industrial robot
- operation and programming with KUKA® OfficeLite / OfficePC[2] (KUKA® OfficeLite/OfficePC ist not scope of delivery)
- Connected via USB cable to KUKA® OfficeLite / OfficePC[2]

Components

- 1x Spike controller
- 6x motors for axis 1 to 6
- ~ 850 bricks
- digital assembly manual (260 steps)
- User documentation for commissioning and operating the robot
- Option package (KOP) for KUKA.WorkVisual including machine data for KUKA.KSS V8.5 and 8.6
- App for KUKA® OfficeLite / OfficePC[2] (KUKA® OfficeLite/OfficePC is not scope of delivery)
- USB cable for power supply and to connect OfficeLite / OfficePC[2] with the robot

Extension set 1 [optional] 119 EUR *

With the extension set 1 you get a stable platform for the education robot, various stations, as well as interchangeable tools for the robot in order to be able to display various teaching contents.

- a little more than 430 parts (original LEGO® components)
- Mechanical gripper with depositing stations for training in a simple pick & place application (incl. 2 table tennis balls)
- Hot-wire application for training of manual movement types and movement instructions (movement types, speed, acceleration, approximation)
- 2 coordinate systems for training the relationships between tool and basic coordinate systems
- Dimensions (L/W/H) 280mm/320mm/280mm

Your choice...

...build yourself, or get fully assembled and tested


*All prices in EUR excl. VAT and shipping costs.

Content

Bricks

The education robot consists of ~ 850 original bricks from LEGO®. The robot can be supplemented at any time with additional, separately available, bricks in order to program interesting tasks.

Assembly manual

The digital assembly manual (Windows® application) is available for download. Detailed steps guide you during assembly. Fun and learning factor guaranteed!

Software

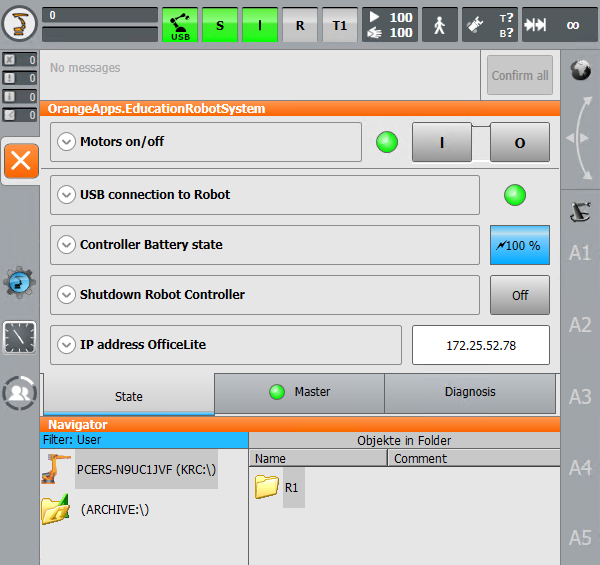

The software comes as option package (KOP) for KUKA.WorkVisual and provides machine data and an app for KUKA® OfficeLite / OfficePC[2] V8.5 and V8.6. The app enables the connection to the robot controller via USB. Don't worry, all steps for commissioning and operating the robot are described in detail in the documentation.

Hints

[1] The availability of bricks, controllers and motors depends on the availability from our suppliers.

[2] KUKA® OfficeLite / OfficePC is not included. This package can be purchased at KUKA®. There are special education licenses for universities, schools or training centers available. Please contact us for more information.
